The core role of high voltage cascade in spray guns: Why is electrostatic spraying inseparable from it?

In advanced manufacturing fields such as painting, metal spraying, and plasma spraying, the performance of spray gun equipment directly determines the spraying quality and production efficiency. In these high-end spraying equipment, a seemingly inconspicuous core component, High Voltage Cascade, plays a vital role.

What is a high voltage cascade? What role does it play in a spray gun?
High voltage cascade is a technology that connects multiple high voltage modules in series in a cascade manner to obtain a higher voltage output. In spray gun equipment, especially Electrostatic Spray Gun or Plasma Spray Gun, it is required to form an extremely high electrostatic electric field or ionized electric field at the nozzle to achieve the charging of paint mist particles, directional adsorption, or material plasma.

And this stable source of high voltage is achieved through the built-in high voltage cascade circuit. It gradually increases the primary voltage (such as 24V or 220V) to tens of kilovolts or even hundreds of kilovolts to drive the spray medium to move with charge or excite plasma.

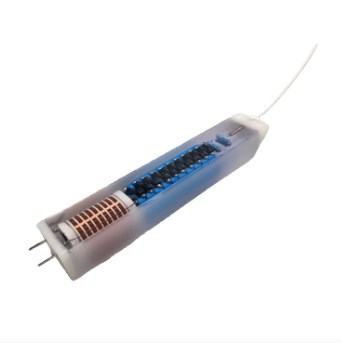

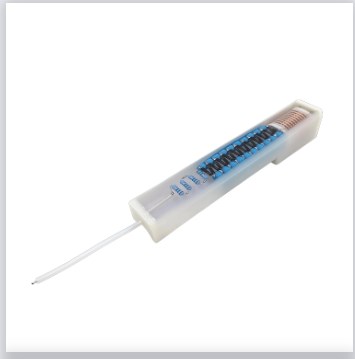

The core structure of high-voltage cascade: the "voltage engine" in the spray gun
Inside the spray gun, the high-voltage cascade system usually consists of the following parts:

High-frequency converter (HF Inverter): converts the input low-voltage AC or DC into high-frequency pulse electricity, which is convenient for the subsequent voltage boost.

Multi-stage step-up modules (Step-Up Modules): Each stage of the module boosts several thousand volts, usually epoxy encapsulated, with extremely strong insulation.

Voltage multiplication stage (Cockcroft–Walton cascade): multiplies through a network composed of capacitors, inductors and diode rectification, with an output of up to tens of kilovolts.

Insulating shell and shielding layer: ensure that the high voltage does not leak out, prevent electric shock to the human body and interfere with other electronic components.

These modules are often designed as an integrated structure, integrated in the spray gun handle or the back of the nozzle, occupying a small space but high efficiency.

Why is the high-voltage cascade so critical? Analysis of five major technical advantages
Stable voltage output ensures uniform coating
Electrostatic spraying is extremely sensitive to voltage fluctuations. The high-voltage cascade module has the ability to stabilize voltage to avoid uneven coating thickness due to uneven electric field strength.

Fast response speed improves production efficiency
The high-frequency cascade has a short response time, which is suitable for continuous spraying and high-speed operation, meeting the requirements of industrial automation lines.

High insulation strength ensures safe operation
The module usually adopts resin casting or vacuum packaging technology, with excellent voltage resistance and insulation performance, and is safe and stable even at high voltage.

Adjustable voltage output to adapt to multi-scenario processes
According to different materials, distances, humidity, and electrostatic sensitivity, the output voltage range can be adjusted, such as 20kV~100kV.

Modular design for easy maintenance and replacement
Once the high-voltage module fails, it can be replaced by unit to avoid the whole machine from being shut down.

Panorama of application fields: electrostatic spraying is just the tip of the iceberg
High-voltage cascade not only shines in the coating industry, but is also widely used in the following spraying scenarios:

Automotive industry spraying: In the electrostatic spraying of car shells and bumpers, the cascade module maintains a 75~90kV high-voltage field to ensure that the paint mist adsorption rate exceeds 90%.

Metal thermal spraying: The plasma spray gun excites argon, nitrogen, etc. through the cascade output high voltage to form plasma, which is used for surface spraying of materials such as titanium and zinc.

Medical coating technology: For example, spraying bioceramics on the surface of stents and dentures must be completed by electrostatic adsorption without thermal damage.

Spraying and insulation treatment of electronic components: Uniform insulation spraying of high-precision PC boards, chip packaging shells, etc.

A high-performance spray gun not only relies on nozzle structure and airflow control, but also the "voltage heart" behind it - the high-voltage cascade module, which is the fundamental factor that determines the electrostatic adsorption force, coating consistency and spraying efficiency. In the future, with breakthroughs in materials, control and microelectronics technology, this core technology will play an important role in more precision manufacturing scenarios, pushing smart spraying to go further and more steadily.
